Body Health Checkup Kiosk
Self-Check-In Healthcare Medical Kiosks HS-V500
Self-Check-In Healthcare Medical Kiosks HS-V600 HS-V500

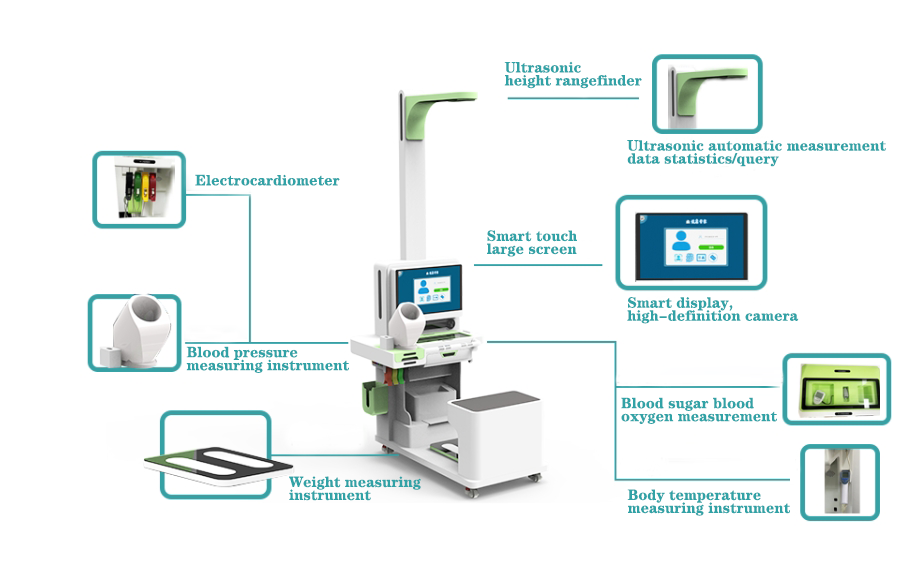

The main operating area adopts a 24-inch capacitor-controlled touch screen, dust-proof design, neat and beautiful, stable performance, and the appearance is standard with light green, representing health, vitality, and progress. At the same time, it supports customization of various colors, full voice-guided self-service operation, supports brushing ID cards, input mobile phone numbers or face recognition, integrated design for file building and measurement, conforming to operating habits, convenient for mobile, equipped with a high-definition camera, standard thermal printer, high-efficiency printing of physical examination reports, and supports data docking of third-party platforms.
Equipment functions
Testing projects fully support functions expansion
Covering basic public health projects, supporting interface docking data upload, project expansion, voice guidance, self-service one-stop physical examination, instant access to physical examination reports
Unique design Excellent craftsmanship
The entire machine curved surface shape, ergonomic design, enhance and optimize user experience function integrated design, universal pulley at the bottom of the equipment, more comfortable measurement process, flexible and convenient movement
Technical parameters
| Product Model | HS-V500 |
| Power Consumption | 100W |
| Power Supply | AC 220V/50HZ |
| Network | RJ45/WIFI |
| Size | 1.2m*0.8m*2.4m |
| Ultrasonic Height and Weight | Height range 70-205cm, accuracy ±0.5cm, using high-precision sensors. Weight range 2.0-250KG, accuracy ±0.1KG, using precision balance beam sensors. |
| Blood Pressure | Suitable for arm circumference 17cm-42cm, measurement range: pressure 0~300mmHg (0~40)kPa, pulse: 40 beats/min~180 beats/min |
| Blood Oxygen Saturation | Measurement range: 70-100% (±2% normal state, ±3% during exercise or weak perfusion, undefined below 70%) |
| Industrial Control Host | 4-core CPU, 64G storage |
| Intelligent Touch Screen | 24-inch high-definition screen |
| Printer | A4 laser printer |
| Infrared Thermometer | Measurement range (in-body mode): 32.0℃-42.5℃, test accuracy: ±0.2℃ |
| Electrocardiogram | Six-lead, twelve-lead |
| Body Fat | Body fat content, water content, basal metabolic rate, body type judgment, bone mass, muscle rate, fat, muscle mass, body fat mass, body water content |
| Waist Measurement | Three-dimensional measurement, accuracy 1mm |
| ID Card Reader | Complies with general technical requirements for resident ID card readers, compatible with ISO14443 (TypeB) standard; adopts non-contact IC card technology, can be connected to computers or other devices to read information from resident ID card dedicated chips |
Universal for resident ID card reader
The HS-V500 intelligent high-end full-body examination machine is a new product independently developed by Huasheng Technology. It can intelligently recognize faces (optional), has a high-end and atmospheric appearance, and is accurately measured. It is widely used in hospitals, schools, physical examination centers, health huts, nursing homes, beauty and fitness clubs and other height measurement places.
Use Cases
* Home & Family: For Elders & Families — Monitor Chronic Diseases (Hypertension/Diabetes) at Home, Avoid Frequent Hospital Visits
* Clinics & Hospitals: For Primary Care — Streamline Patient Screening, Reduce Waiting Time, Improve Efficiency
* Senior Care Facilities: For Nursing Homes — Centralized Health Management for Residents, Real-Time Risk Alert
* Corporate Wellness Programs: For Enterprises — On-Site Health Checkups for Employees, Boost Workplace Wellbeing
Company Strength
1. Qualifications: National High-Tech Enterprise, 50+ independent intellectual property rights, ISO-compliant production system.
R&D Team: Professional hardware & software R&D team with continuous technological iteration.
2. Cooperation Scale: Served 5000+ institutions (government, medical, elderly care) + partners like China Mobile, China Post, Wanda Group.
Service Network: 24-hour technical hotline, free online/offline operation training.
Cooperation Modes
1. Equipment Procurement: In-stock supply, 1-year warranty + lifelong maintenance, bulk order discounts.
2. Customized Development: Functional module adjustment, appearance customization, rapid prototyping in 7-15 days.
3. Service Outsourcing: One-stop service (equipment + operation + data management) for turnkey projects.
After-Sales Support
We completely understand your concern about after-sales support – it’s a critical factor in any purchase decision.
Here’s how we ensure your peace of mind:
After-Sales Service Policy:
Within 1-Year Warranty:
Free replacement of defective parts (excluding shipping costs).
Human damage is not included in the free after-sales service.
After 1-Year Warranty Period:
Continued technical support available. Any replacement parts will be charged at cost, plus applicable shipping fees.
How to be a distributor?
Becoming a distributor is simple! Please confirm all the details below.
1. Choose Products for your market.
2. Get a basic business license if needed (check local laws)
3. Place your first order.
4. Payment terms and delivery
5. Market the products (such as ads, promotions)
Contact Us
Welcome to contact Wincy for more details.
Mobile: +86 159 8911 4474
WhatsApp: +86 198 6570 7933
Email: wincywang@hsyil.com
Website: https://www.hsyli.com
