Self-Check-In Healthcare Medical Kiosks HS-V590
Self-Check-In Healthcare Medical Kiosks HS-V590
Product features of health management machine
The main operating area adopts tempered glass dustproof design, neat and beautiful hygienic measurement project hidden design, and the appearance is neat and tidy.
Standard light green, healthy, energetic, and progressive. At the same time, the various color matching capacitive touch control operating screens specified by customers can be customized with high-definition cameras;
Full voice-guided self-service operation to swipe your ID card (C card) or enter your mobile phone number to build files and measure
23.8 high-definition advertising screen, dual-screen different display standard with A4 laser printer, high-efficiency printing of physical examination reports: Supports data docking of third-party platforms

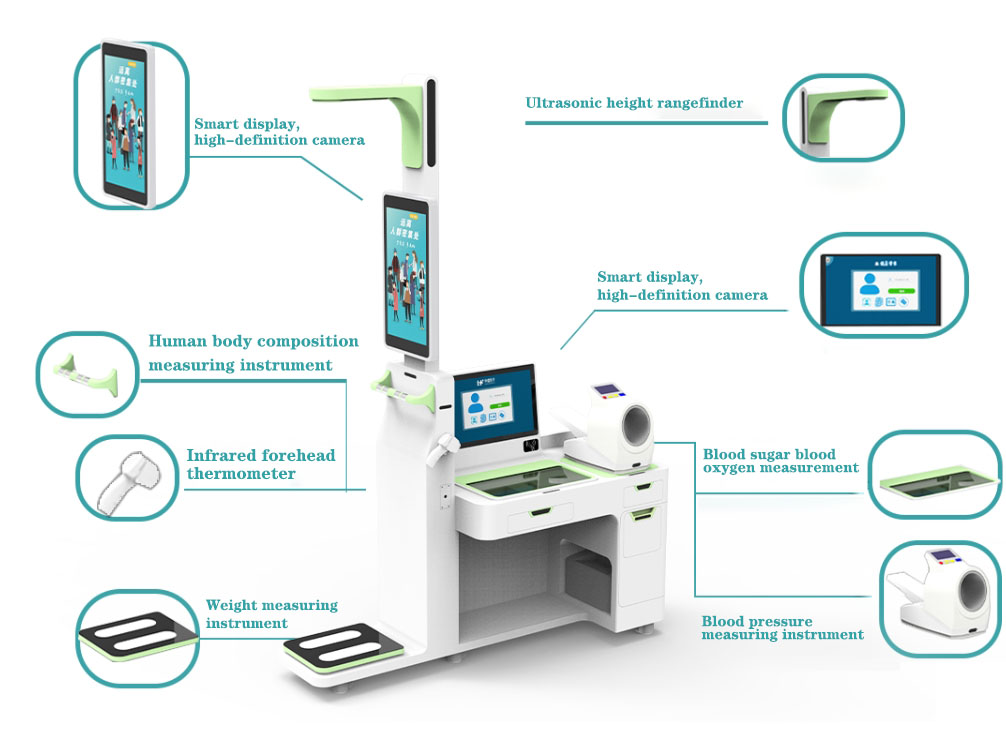

Testing items
Complete testing items and support function expansion
Covering basic public health projects, supporting interface docking data upload, project expansion, voice guidance, self-service one-stop physical examination, instant access to physical examination reports
Equipment functions
The entire machine curved surface shape, ergonomic design, enhance and optimize user experience function integrated design, universal pulley at the bottom of the equipment, more comfortable measurement process, flexible and convenient movement
Technical parameters
| Product Model | HS-V590 |
| Power Consumption | 120W |
| Power Supply | AC 220V/50HZ |
| Network | RJ45/WIFI |
| Size | 1.6m*0.6m*2.4m |
| Ultrasonic Height and Weight | Height range 70-205cm, accuracy ±0.5cm, using high-precision sensors Weight range 2.0-250KG, accuracy ±0.1KG, using precision balance beam sensors |
| Blood Pressure | Suitable for arm circumference: 17cm-42cm, measurement range: pressure 0~300mmHg (0~40) kPa, pulse: 40 beats/min~180 beats/min |
| Blood Oxygen Saturation | Measurement range: 70-100% (±2% normal state, ±3% exercise or weak perfusion, undefined below 70%) |
| Industrial Control Host | 4-core CPU, 64GB storage/RK3288 4-core, 2+8GB |
| Intelligent Dual Screen | 22+24-inch high-definition display, dual-screen different display |
| Printer | A4 laser printer |
| Infrared Thermometer | Measurement range: (in-body mode): 32.0℃-42.5℃, test accuracy: ±0.2℃ |
| Electrocardiogram | Six-lead, twelve-lead |
| Body Fat | Fat content, water content, basal metabolic rate, body type judgment, bone mass, muscle rate, visceral fat, muscle mass, body fat mass, body water content |
| Waist Measurement | Three-dimensional measurement, accuracy 1mm |
| ID Card Reader | Complies with the general technical requirements for resident ID card readers, compatible with ISO14443 (TypeB) standard; adopts non-contact IC card technology, can be used to read the information inside the resident ID card dedicated chip when connected to a computer or other devices |
Meet the general technical requirements of resident ID card readers
The HS-V590 intelligent high-end full-body health examination machine is a new product independently developed by Huasheng Medical Technology. It can intelligently recognize faces (optional), has a high-end and atmospheric appearance, and is accurately measured. It is widely used in hospitals, schools, physical examination centers, troops, health huts, nursing homes, beauty and fitness clubs and other height measurement places.
Use Cases
* Home & Family: For Elders & Families — Monitor Chronic Diseases (Hypertension/Diabetes) at Home, Avoid Frequent Hospital Visits
* Clinics & Hospitals: For Primary Care — Streamline Patient Screening, Reduce Waiting Time, Improve Efficiency
* Senior Care Facilities: For Nursing Homes — Centralized Health Management for Residents, Real-Time Risk Alert
* Corporate Wellness Programs: For Enterprises — On-Site Health Checkups for Employees, Boost Workplace Wellbeing
Company Strength
1. Qualifications: National High-Tech Enterprise, 50+ independent intellectual property rights, ISO-compliant production system.
R&D Team: Professional hardware & software R&D team with continuous technological iteration.
2. Cooperation Scale: Served 5000+ institutions (government, medical, elderly care) + partners like China Mobile, China Post, Wanda Group.
Service Network: 24-hour technical hotline, free online/offline operation training.
Cooperation Modes
1. Equipment Procurement: In-stock supply, 1-year warranty + lifelong maintenance, bulk order discounts.
2. Customized Development: Functional module adjustment, appearance customization, rapid prototyping in 7-15 days.
3. Service Outsourcing: One-stop service (equipment + operation + data management) for turnkey projects.
After-Sales Support
We completely understand your concern about after-sales support – it’s a critical factor in any purchase decision.
Here’s how we ensure your peace of mind:
After-Sales Service Policy:
Within 1-Year Warranty:
Free replacement of defective parts (excluding shipping costs).
Human damage is not included in the free after-sales service.
After 1-Year Warranty Period:
Continued technical support available. Any replacement parts will be charged at cost, plus applicable shipping fees.
How to be a distributor?
Becoming a distributor is simple! Please confirm all the details below.
1. Choose Products for your market.
2. Get a basic business license if needed (check local laws)
3. Place your first order.
4. Payment terms and delivery
5. Market the products (such as ads, promotions)
